Clear Vinyl Marine Windows Installation on the Lady Cindy, Venice FL

Clear vinyl is the hardest-working part of any boat enclosure, and on the Gulf Coast it is also the part that wears out first. Sun, heat and salt go to work on it from the day it is installed, and by the time most enclosures reach our shop the panels have yellowed, hazed or cracked along the folds, and the zippers have had enough.

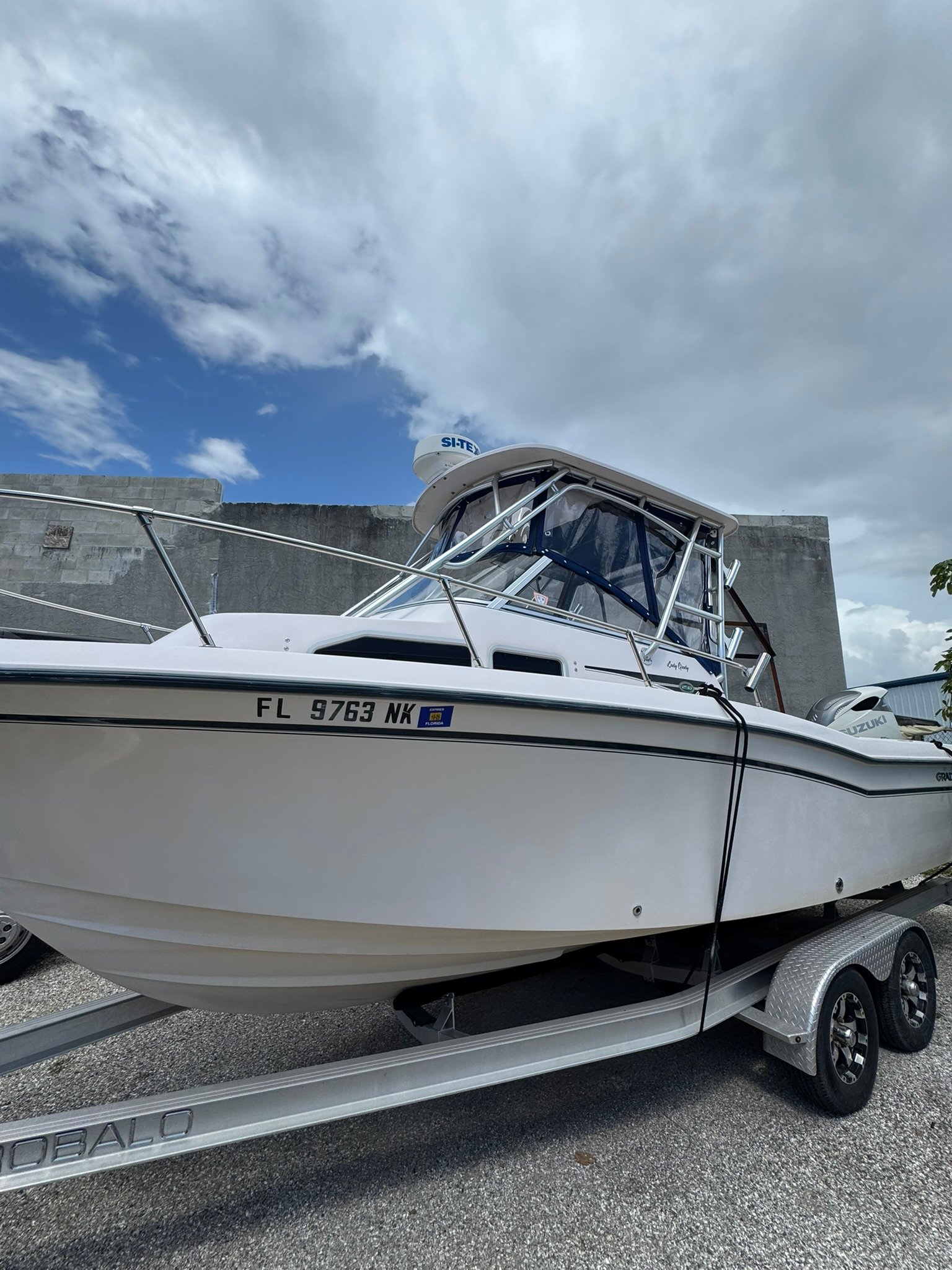

This project was a full installation of new clear vinyl marine windows on the Lady Cindy, a boat kept here in Venice, FL. The brief was straightforward: give the owner weatherproof, UV-resistant clear panels that fit the boat's structure precisely, restore clear visibility from the helm, and make the cabin a comfortable place to be in sun, rain and spray.

What clear vinyl marine windows do for a boat

An enclosure with clear vinyl windows turns an open cockpit or a partly covered cabin into a protected space without giving up the view. On a boat like the Lady Cindy, that means:

• the helm stays dry when a squall comes through
• spray and salt stay off the electronics, the upholstery and the people on board
• the cabin and cockpit are usable in weather that would otherwise end the day
• UV exposure on the interior drops, which keeps seats, trim and finishes from fading and cracking

The clear vinyl has to do all of this while staying optically clear. A panel you cannot see through is not a window, it is a wall, and distorted vinyl at the helm is a safety problem, not just an annoyance.

What we installed on the Lady Cindy

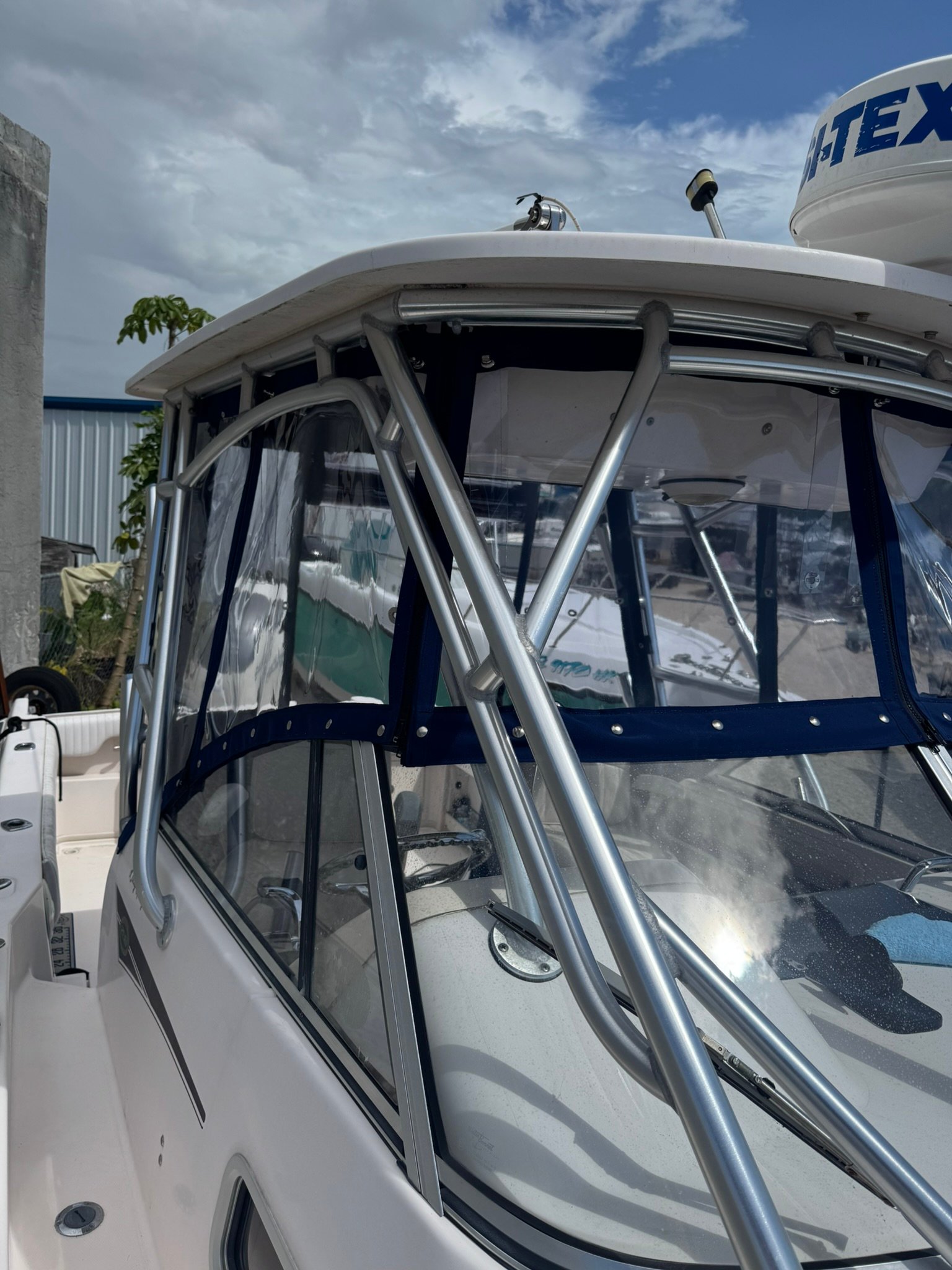

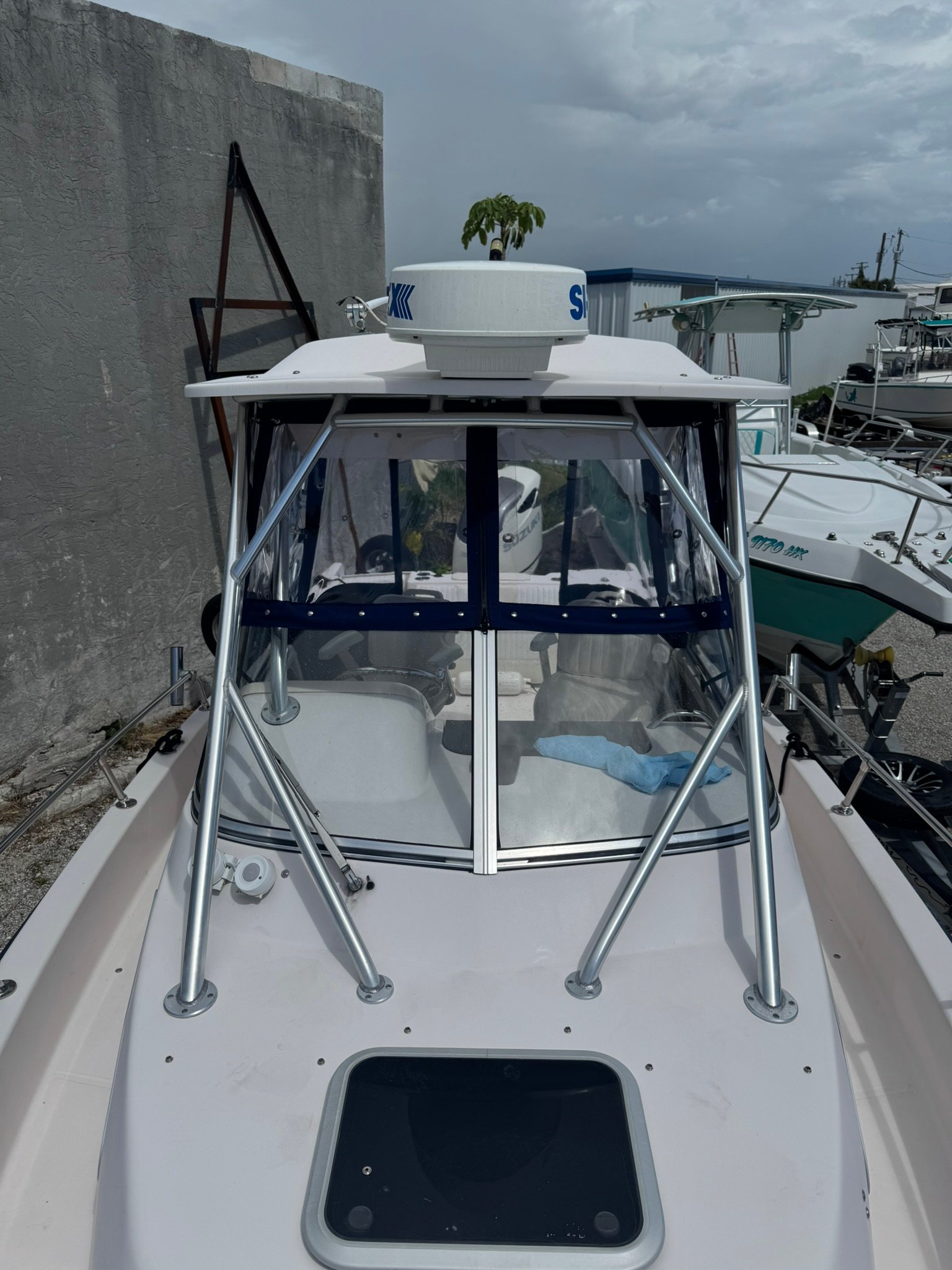

The Lady Cindy received a complete set of new clear vinyl panels: the windshield section forward, the side panels and the aft panels with their zippers. Each panel was patterned from the boat's own structure so the new windows follow the frame and the canvas exactly, with no bagging, no gaps at the corners and no stretch marks from forcing a panel into a shape it was not cut for.

Precision-fit panels

Patterning is where an enclosure is won or lost. We take the pattern from the boat, not from the old panel, because old clear vinyl has usually shrunk, stretched or distorted. The new panels are cut to the real geometry, which is why they sit flat, zip without fighting and shed water instead of holding it.

UV-resistant marine-grade clear vinyl

We used marine-grade clear vinyl with UV protection built in. UV treatment is what slows the yellowing and the optical distortion that ruin cheaper panels after a couple of Florida summers. For owners who want the clearest, longest-lasting option, pressed and polished sheet such as Strataglass is the top tier, and we are glad to walk you through the choices for your boat and your budget.

Sturdy stitching and corrosion-resistant hardware

Every seam on the new panels is sewn with UV-resistant marine thread, so the stitching will not chalk and let go before the vinyl does. Zippers and fasteners are corrosion-resistant, which matters on a boat that lives in salt air. A clear panel is only as good as the zipper that holds it, and a seized zipper is the most common reason an owner stops using an enclosure.

Choosing clear vinyl: what matters in Florida

Not all clear vinyl is the same, and the differences show up fast on the Gulf Coast. When we spec panels for a boat in Venice, Nokomis or Englewood, these are the things we weigh:

• UV treatment. Untreated clear sheet yellows quickly here. UV-stabilized vinyl keeps its clarity for years longer.
• Optical clarity and distortion. Pressed, polished sheet is clearer and has less wave than rolled sheet. At the helm, that matters.
• Thickness. Heavier gauge panels hold their shape, resist flapping and stand up to being rolled and unrolled. Thinner material is lighter and cheaper but wears out sooner.
• Scratch resistance. Some premium clear vinyls have a coated surface that resists the fine scratches that eventually turn a window hazy.
• How it is framed. The canvas border, the stitching and the zippers determine how the panel tensions and how long the whole assembly lasts. The best clear vinyl in the world does not help if it is sewn into tired canvas with ordinary thread.

The result: a sleek, tailored enclosure and a better day on the water

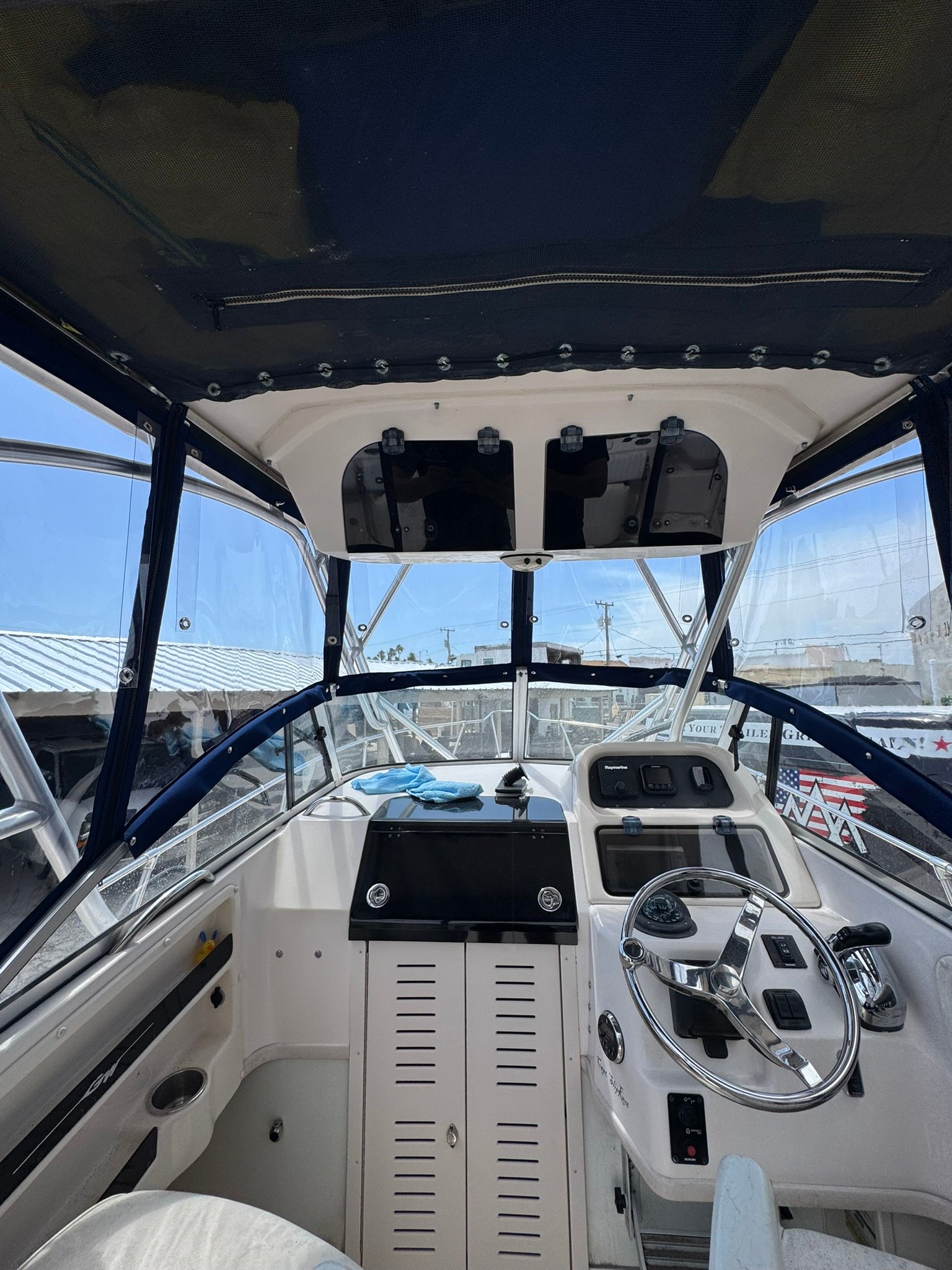

With the new windows in, the Lady Cindy has a crisp, tailored enclosure that looks like it belongs on the boat. Visibility from the helm is clear in every direction, the cockpit and cabin stay dry and comfortable when the weather turns, and the upholstery inside is no longer baking in direct sun. These panels were built to handle the daily demands of coastal boating in Venice, Nokomis and Englewood, where heat and moisture degrade inferior materials in a season.

How to make clear vinyl windows last

Good clear vinyl is an investment, and a few habits protect it:

• Rinse the panels with fresh water after every trip to float salt and grit off the surface before you touch it.
• Wash with mild soap and a soft cloth. Never use ammonia glass cleaners, solvents or anything abrasive.
• Keep sunscreen, insect repellent and fuel off the vinyl. They attack the surface.
• Roll panels, never fold them. A crease in clear vinyl is permanent.
• Store removed panels clean, dry and rolled, out of direct sun.
• Rinse zippers and work them occasionally so salt does not lock them up.
• Have small tears, loose stitching or a failing zipper repaired early, before the panel has to be replaced.

More than windows

Clear vinyl is one part of what we do for boats on the Gulf Coast. We build complete enclosures and custom marine covers, T-top enclosures like the one on this center console fishing boat, bimini tops and console covers, as well as full boat upholstery services for seats, cushions and helm chairs. If the inside of the boat needs attention as well as the windows, we can handle both in one visit.

Get a free quote in Venice, FL

Need new clear vinyl marine windows or a complete enclosure in Venice, Sarasota or Port Charlotte? Call (941) 786-4100 or use the contact page to set up a free estimate. Send a few photos of your current panels and we will tell you whether they can be replaced individually or whether the enclosure is ready for a full rebuild.
